Blue-white

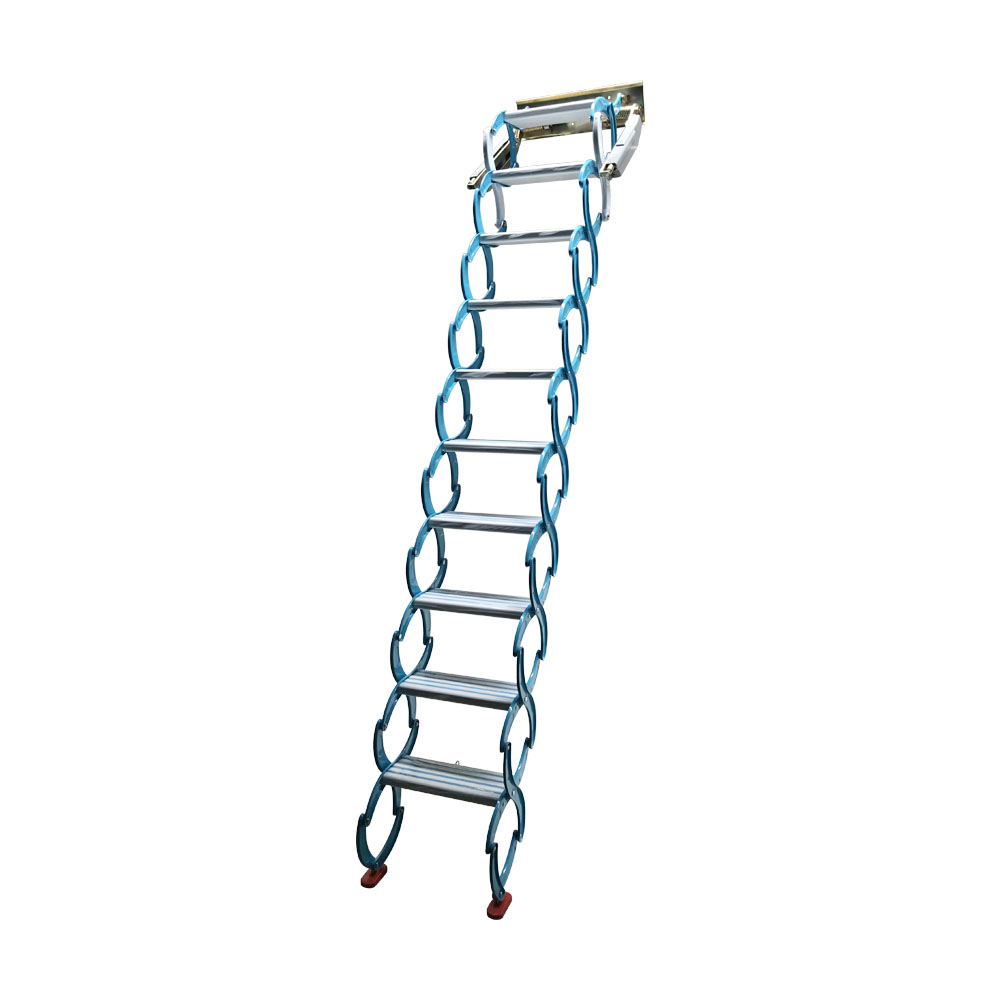

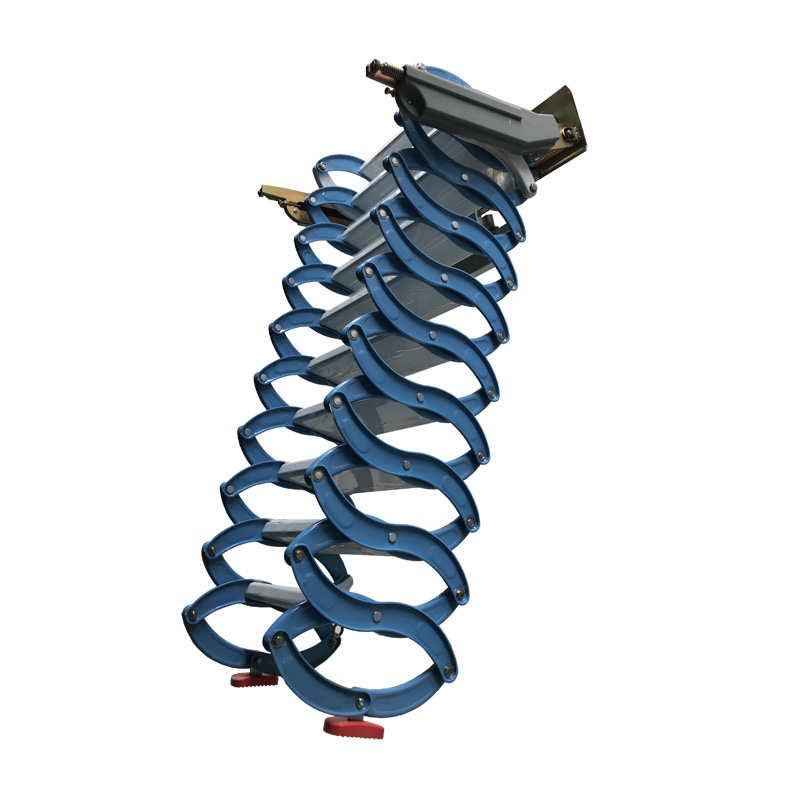

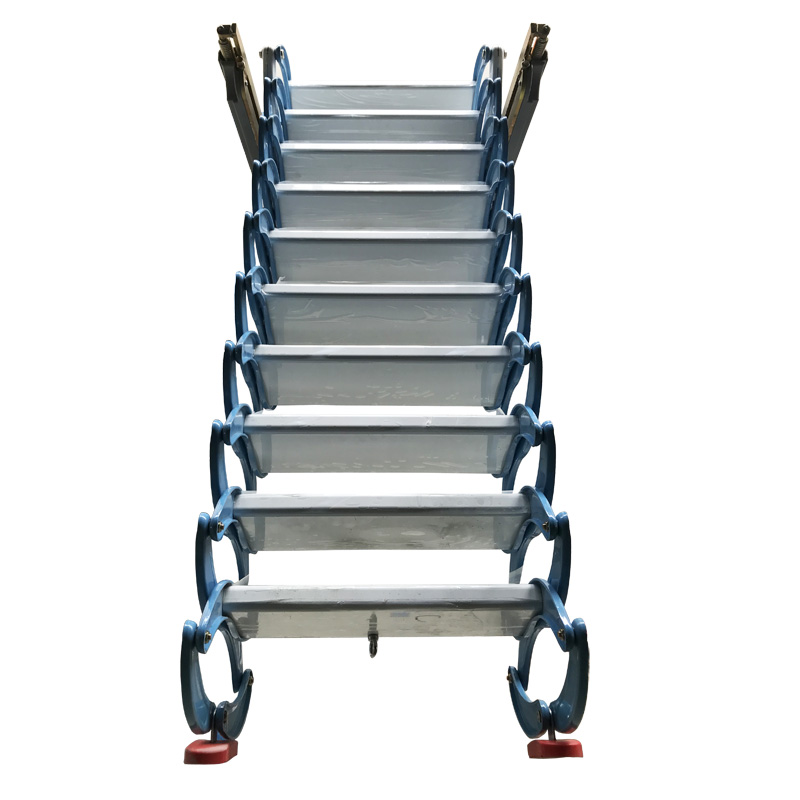

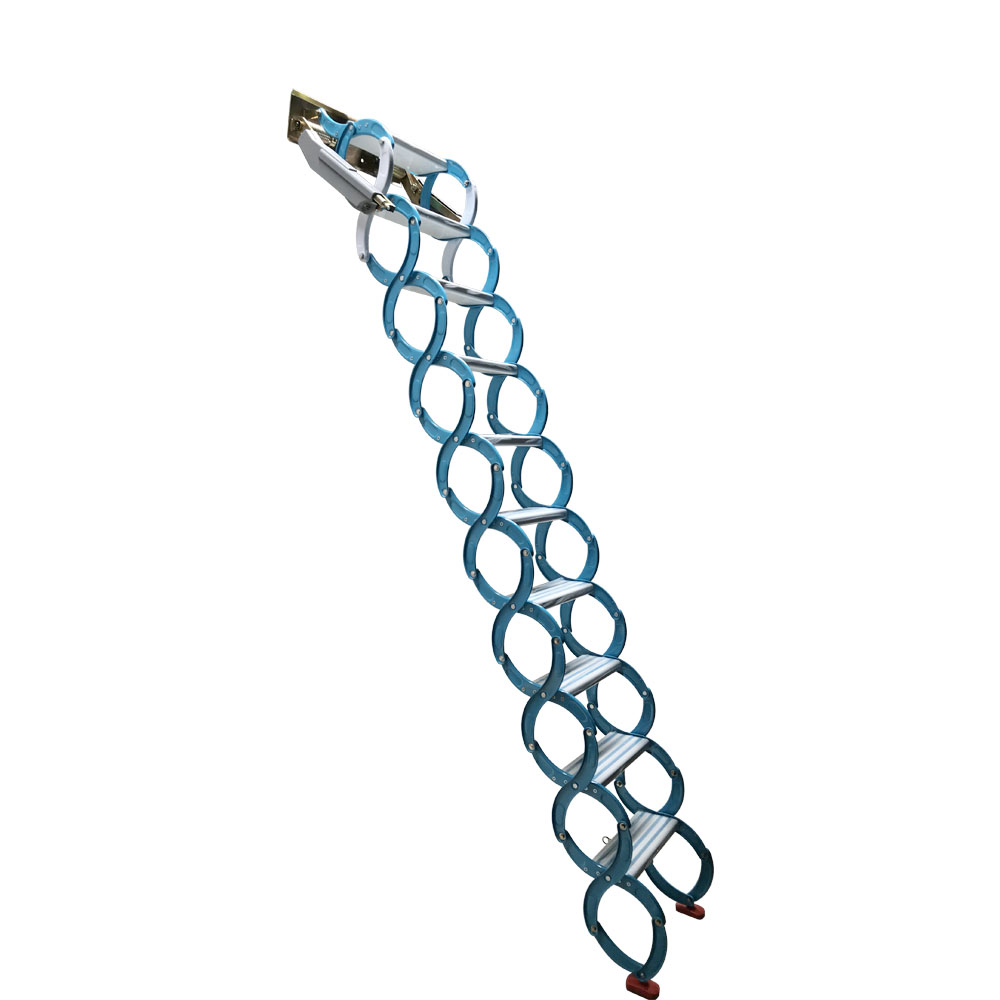

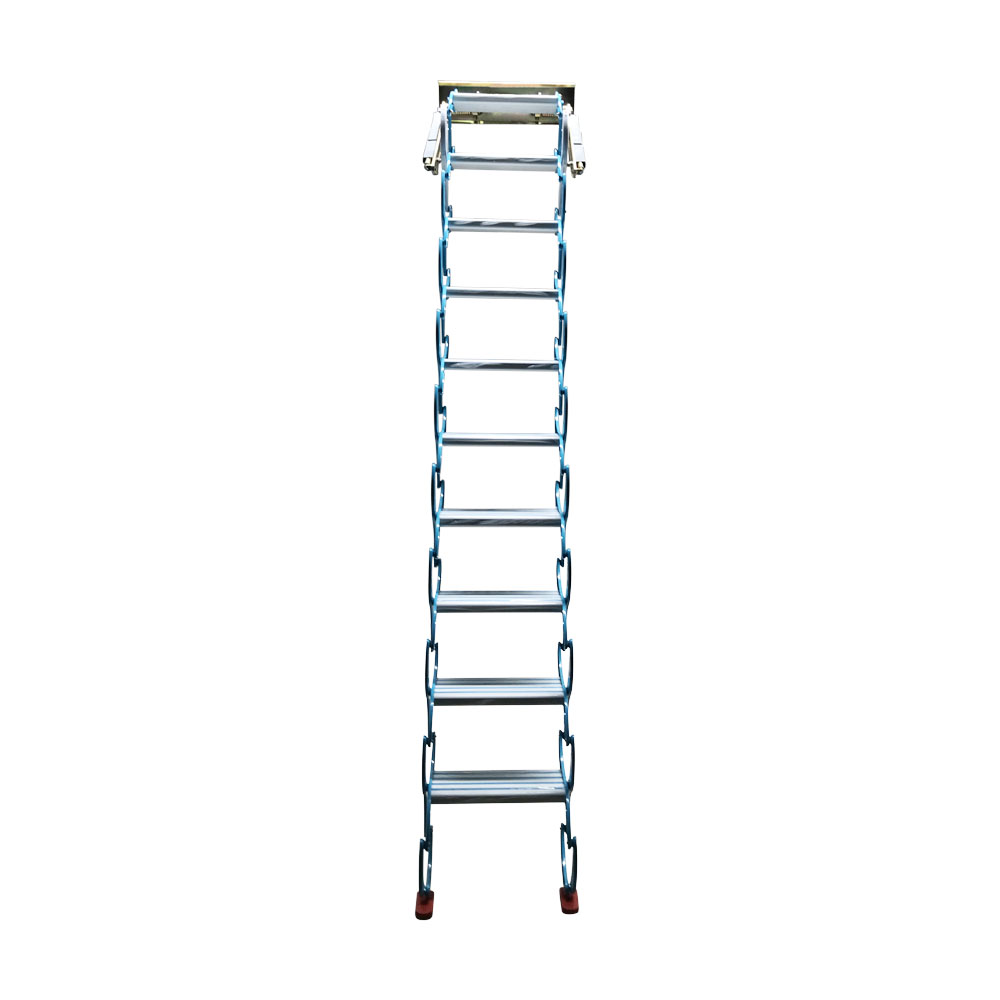

Narrow Wall-mounted Telescoping Ladder |
|
This wall-mounted folding ladder is made of high-quality
Aluminum-magnesium alloy, ensuring durability and resistance to wear.
Adopt high-temperature
electrostatic spraying process and features fine craftsmanship.
The specially designed S-shaped strings
enhance the load-bearing capacity to up to 660 lbs (300 kg). |
|
 |
|

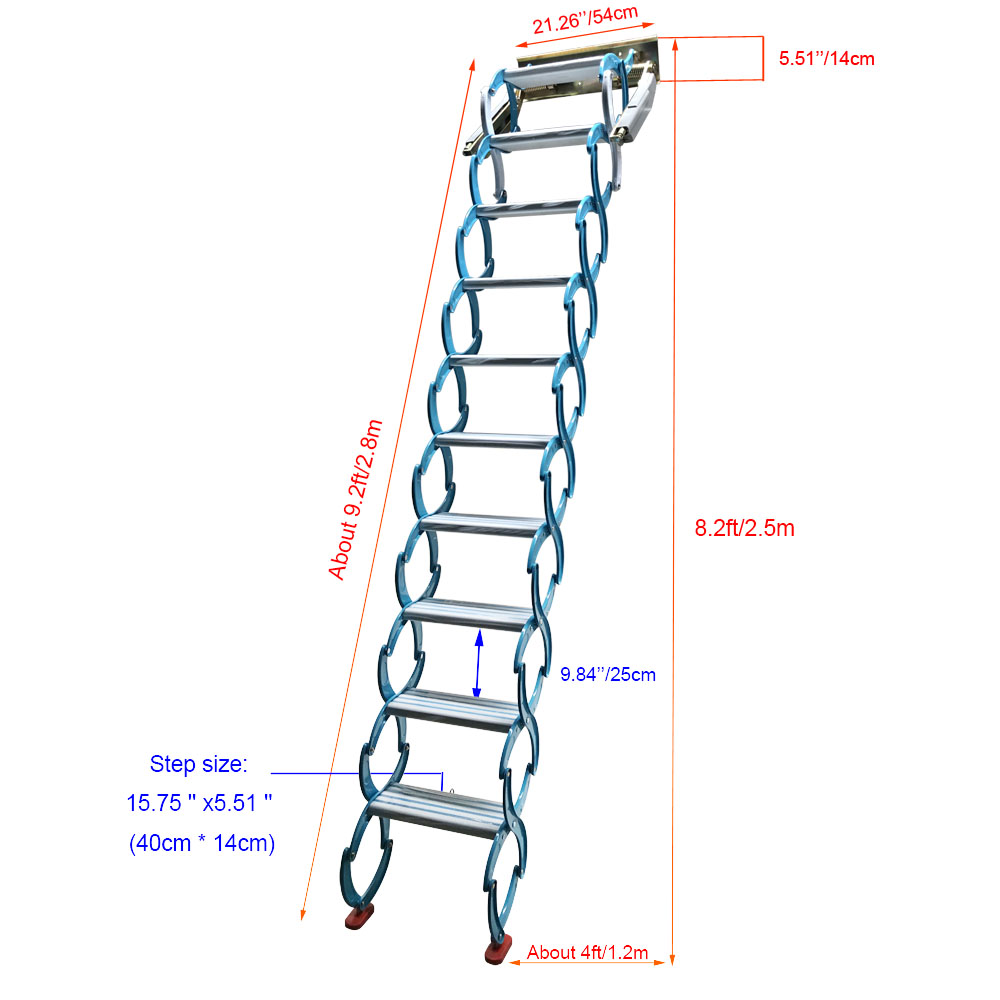

Product parameter |
|
|
Color |
Blue-white |
|
Style |
Narrow Wall-mounted Folding Ladder |
|
Material |
Aluminum-Magnesium Alloy |
|
Amount of Pedals |
10+2=12 Steps |
|
Size of Pedals |
40x14cm/15.75x5.5 in |
|
Size of Mounting Base Plate |
54x14cm(21.2x5.5inch) |
|
Distance between Two Steps |
9.84in/25cm |
|
Opening Vertical Height |
2.5m/8.2ft with 10 Steps |
|
Max Vertical Height |
3m/9.8ft with 12 Steps |
|
Accessories |
Complete Installation Accessories, 1set Long Pull
Rod |
|
Ajustable Vertical Height |
The middle pedals can be removed to fit for
different install vertical height |
|
|
 |
|
1: This wall foldable
attic ladder is made of high-quality Mg-Al Alloy with wear and sturdy
characteristics, more durable.
2: Equipped with long pull rod, easy to open and close the ladder,
simple operation.
3: Adapt thicked S-shaped strings, which can enhance the bearing
capacity, loading capacity is 660lbs. |
|
Installation Display |
|
 |
|
Easy Installation and
Simple Operation:
Complete with all
necessary accessories and detailed installation instructions, this wall
retractable ladder is easy to install and maintain.
Derived from ergonomic
design, equipped with a long pull rod for convenient opening and
closing. |
|
Feature(same Structure with Black
color) |
|
 |
2 Additional Steps and
Retractable Pull Rod
Install with total 12sets pedals, then opening vertical Height can up to
3m/9.8 ft. |
|
Thick Rivets Connection
Each joint is connected by rivets. The use of thick rivets make the
ladder connection more firm and secure.
|
 |
|
 |
Double Plastic Handrail
A plastic handrail on the left and right to protect the support arm. |
|
21.2x5.5in
Install Frame Size
can be installed on the beam, narrow wall, due to the small installation
contact surface. |
 |
|
 |
High Performance Spring
The hydraulic rod and spring make the door closed and silent and the
carriage board; The rotary door lock becomes anti-lock, safe and
convenient. |
|
Enhanced Safety
Design |
|
1: The extension steps
ladder design with 19.7x5.5 in widen pedals with non-slip strips for
enhanced safety.
2: Also bottom
rubberized pads can prevent slip.
3: The specially
designed S-shaped strings enhance the load-bearing capacity to up to 660
lbs (300 kg). |
|
Note:
Users are responsible for the proper
operation and maintenance of the equipment they use.
Some equipment will quickly become
damaged and unsafe if abused or subjected to improper demands.
If equipment is regularly maintained
and not abused, you will get the maximum safety and service performance
from loft wall ladder stairs.
|
|
 |
 |
|
Pacakge
included(022267) |
|
1set
Blue-white color Wall-Mounted Attic Ladder
2 additional Steps
1 Retractable Pull Rod
|
|
|
|
 |
|
 |
